Application

FTTH network for indoor and outdoor

Local Area Network and Building Cabling Network

Interconnect between instruments

terminal box and communication

Features

1.Cost effective solution for in house termination.

2.Low insertion loss and added loss.

3.Height of attenuation.

4.The material in the jumpel cable are all-weather and UV-resistant.

5.Mechanical performance: IEC 61754-4 standard.

6.RoHS and REACH materials compliant.

7.Cable diameter Range: 2.0*3.0mm, 2.0*5.0mm.

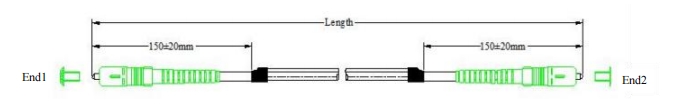

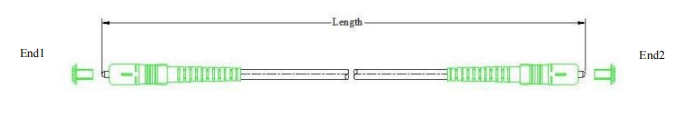

Dimensional Diagrams

1.FTTH Flat Drop Patch Cord 2.0*3.0mm Cable

2. FTTH Flat Drop Patch Cord 2.0*5.0mm Cable

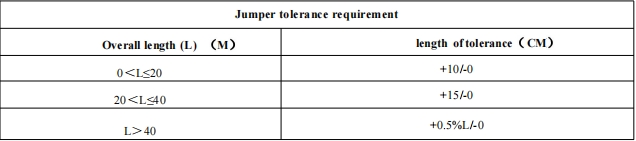

Patch cord versions

Cable Structure

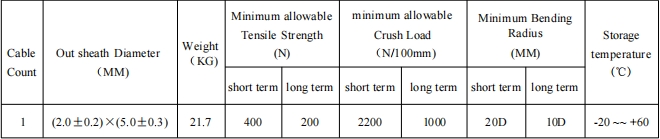

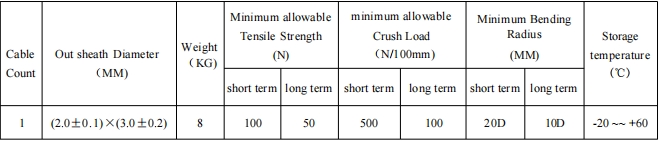

Cable Parameters

Cable Structure

Cable Parameters

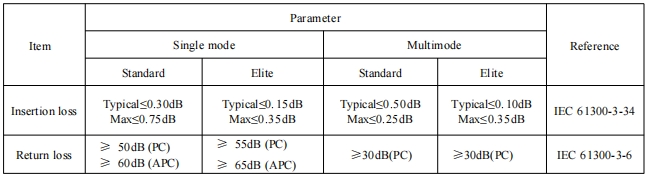

Optical Characteristics

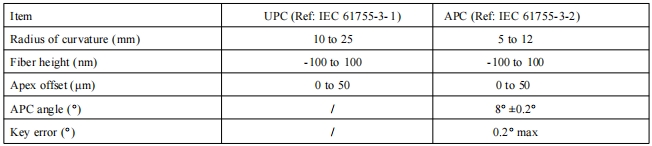

End-Face Geometry

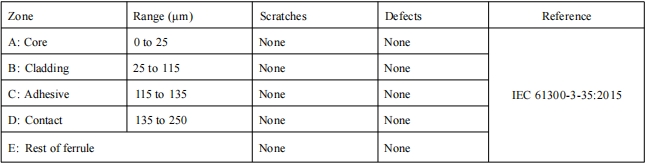

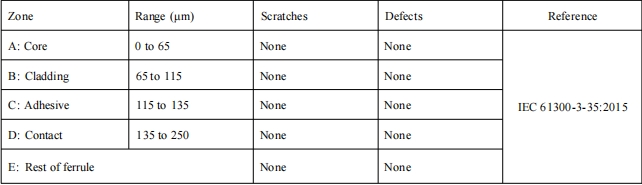

End-Face Qualty (SM)

End-Face Qualty (MM)

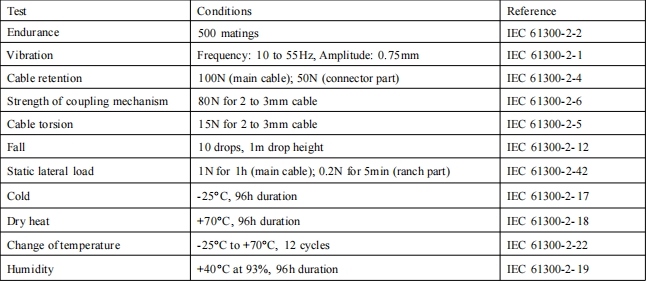

Mechanical Characteristics
