Standard

ISO/IEC 11801

TIA/EIA 568-C.3

YD/T 1272-2009

Application

①Telecom network local area network(LAN),

②Wide area network(WAN), fiber-to- desktop (FTTX)

③Optical signal connection, optical

④Used on ODF

Specification

Fiber Type: SM(G.652D)

Fiber Diameter: 9/125μm

Cable Diameter: 3mm

Cable Jacket: PVC/LSZH/OFNP

Ceramic Ferrule: UPC

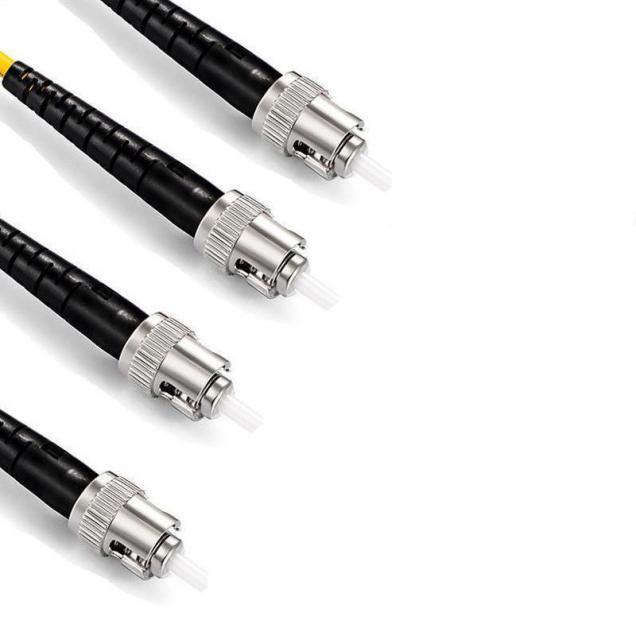

Connector Type: ST-ST(Familiar twistlock bayonet coupling)

Connector Material: Nickel-plated die-cast

Electrical Performance

Wave Length: 1310/1550nm

Insertion Loss: ≤0.2dB

Return Loss: ≥30dB

Pull-out Force: ≥150 lbs (cable-to-connector)

Durability: ≥1000cycles

Repeatability: ≤0.2dB

Changeablility: ≤0.1dB

Thermal Characteristics

Storage Temperature: -20°C ~70°C

Operating Temperature: -40°C ~80°C
